20 Ton LH Type Double Girder Overhead Crane Electric Hoist For Workshop

Brand Name : Kuangyuan

Model Number : LH

Certification : CE ISO

Place of Origin : China

MOQ : 1SET

Price : USD 5000-30000/SET

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100ets/month

Delivery Time : 30working days

Packaging Details : Standard export packaging

Product Name : 20Ton LH Type Electric hoist double beam bridge crane

Working duty : A3

Lifting speed : 8,0.8/8 m/min

Travelling speed : 20m/min

Tensile of wirerope : 2160kN/mm2

Protection and Insultation : IP54, F class

Working Source : 380V 520HZ 3PH

Recommended steel : 38

Lifting mechanism : Electric Hoist

Operation method : Ground operation and cab control

Contact Now

3-20Ton LH Type Electric hoist double beam bridge crane

The LH electric hoist double girder crane is an economical and environmentally friendly product with small appearance size, low building clearance, light weight, low power consumption and low price compared with bridge double beams. The operating mechanism is started in stages to ensure a stable start of the product. After the remodeled design, the number of inching operations is greatly increased. Used in factories, logistics and other occasions, the working level is intermediate, not suitable for flammable and explosive environments, the total weight of the crane includes the weight of the hoist.
Technical parameter:
Technical parameter
Lifting weight T 3,5,10,16,20
Operation form Driver operation
or ground operation
Speed Hoisting M/Min 8,8/0.8
Traversing 20
Traveling Syrface 20(30)
Cabin 20(30)
Motor Hoisting Type/kw ZD1**
Traversing YSE80-4
Traveling Syrface YSE90L-4
/YSE802-4
Cabin ZDRI00-4
Electric Hoist Type CD/MD
Lifting Height M 6,9,12,18
Working class A3
Power Source ZDRI00-4
Overview:
1. Reasonable equipment structure: The LH electric hoist bridge crane (referred to as the hoist double beam crane) series is composed of four main components: bridge, trolley, cart and electric. The fixed wire rope electric hoist is used as the lifting mechanism (main Hooks and auxiliary hooks), installed on a centrally driven double-track trolley, and a crane used in conjunction with a double-beam bridge;
2. Multiple control modes coexist: there are 3 modes of ground operation, wireless operation, and operation room operation. There are two types of operating room, open type and closed type, which can be divided into left-mounted and right-mounted according to the actual situation. There are three types of entry directions: side, end, and top;
3. The components are closely coordinated: the operation of each mechanism of the crane is coordinated with the electric control equipment by the master controller in the frame room and the ground control button box to realize the starting, adjustment, reversing and braking of the motors of each mechanism.
4. Various equipment specifications: lifting weight is 5~50t/10t, span is 10~32m, working class is A3~A5, temperature range is 120℃~40℃, power grid fluctuation is ±10%.
5. Equipment advantages: LH type double beam electric hoist bridge crane has the advantages of compact size, low building clearance, light weight, and small wheel pressure.
Sketch:

20 Ton LH Type Double Girder Overhead Crane Electric Hoist For Workshop

20 Ton LH Type Double Girder Overhead Crane Electric Hoist For Workshop

20 Ton LH Type Double Girder Overhead Crane Electric Hoist For Workshop

Features:
▶ PLC+man-machine interface(optional)
▶ Variable-frequency technology
▶ Small space use
▶ Safety and reliable
▶ Energy-conservation
▶ Low cost of running and maintaining,
Safety System:
▶ Weight overload protection device.

▶ Safety monitoring system(optional)
▶ Crane travelling limit switch
▶ Voltage lower protection function
▶ Emergency stop system
▶ Wind speed indicator, etc.

Design Standard:

▶ Capacity: 5-50T
▶ Span: 10.5-31.5m
▶ Lifting height: 6-30m

▶ Comply with standards of FEM and HMI
▶ Galvanized steel rope :1870kN/mm2
▶ Hook group :DG34CrMo
▶ Electric system :IP55
▶ Steel plate :Q345-B

Contact us:

Thank you for your interests in Henan Mine Crane Co.,Ltd. We look forward to receiving your any question about Electric Winch and provide you our best solution.


Product Tags:

Electric Hoist Double Girder Crane



20 Ton Double Girder Overhead Crane



LH Type Double Girder Crane

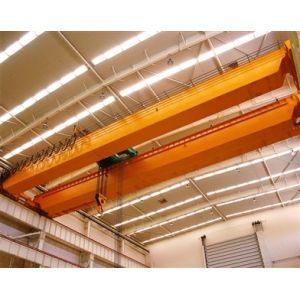

Wholesale 20 Ton LH Type Double Girder Overhead Crane Electric Hoist For Workshop from china suppliers
